Overview
Treasury Software's ACH Universal Online supports the creation of JPMorgan Chase Canada EFT files using the CPA-005 Canadian EFT format. JPMorgan Chase processes Canadian EFT transactions through the Royal Bank of Canada (RBC) network, which means setup requirements closely align with RBC Canadian EFT processing standards
This guide explains how to configure your account for JPMorgan Chase Canada EFT processing, including Originator ID requirements, banking information setup, and CPA-005 file creation.
Table of Contents
- CPA-005 & JPMorgan Chase Canada Overview
- JPMorgan Chase Canada EFT Setup Instructions
- JPMorgan Chase CPA-005 File Specifications
- Frequently Asked Questions (FAQs)
CPA-005 & JPMorgan Chase Canada Overview
JPMorgan Chase Canada utilizes the Canadian Payments Association (CPA) Standard 005 format for EFT transactions.
Key Features
- Supports Canadian EFT credit transactions
- Uses the CPA-005 1464-byte format
- Processes through RBC Canadian banking network
- Requires a valid Originator ID assigned to the account
Important Notes
Before creating files, confirm the following with JPMorgan Chase:
- Canadian bank account number
- Originator ID
- Transit number
- Financial institution number
- Any bank-specific transmission requirements
Step-by-Step JPMorgan Chase Canada EFT Setup
Step 1: Open Canadian EFT Settings
Navigate to the Canadian EFT setup tile within ACH Universal Online
Step 2: Select the Appropriate Bank Configuration
Because JPMorgan Chase Canada processes through RBC, select JPMorgan Chase from the bank options, and then choose the correct Data Destination Centre (these will be the same options as RBC)
Step 3: Enter Company & Banking Information
Complete the required fields:
- Short Company Name (many banks require all letters capitalized with no spaces)
- Long Company Name
- Originator ID
- Canadian Bank Account Number
- Financial Institution Number
- Branch Transit Number
Click 'Save'
Step 4: Verify Originator ID
For most JPMorgan Chase Canada clients, the Originator ID should match the information provided by the bank for the specific Canadian account.
Important: Always confirm the Originator ID directly with JPMorgan Chase before transmitting production files.
Step 5: Create Your CPA-005 EFT File
After setup is complete, continue with Canadian EFT file creation by importing an Excel/CSV file or by integrating with QuickBooks Online.

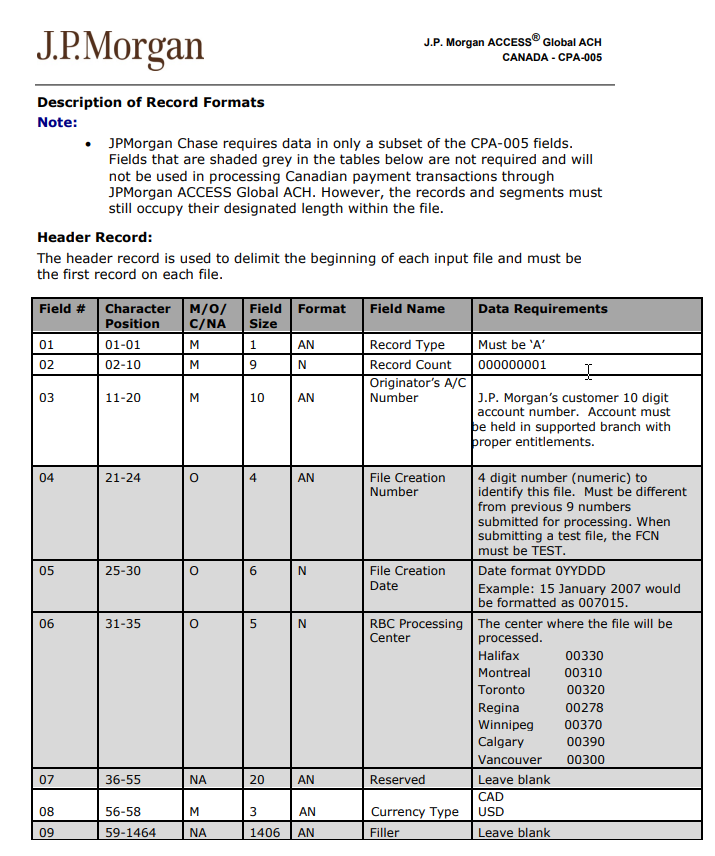

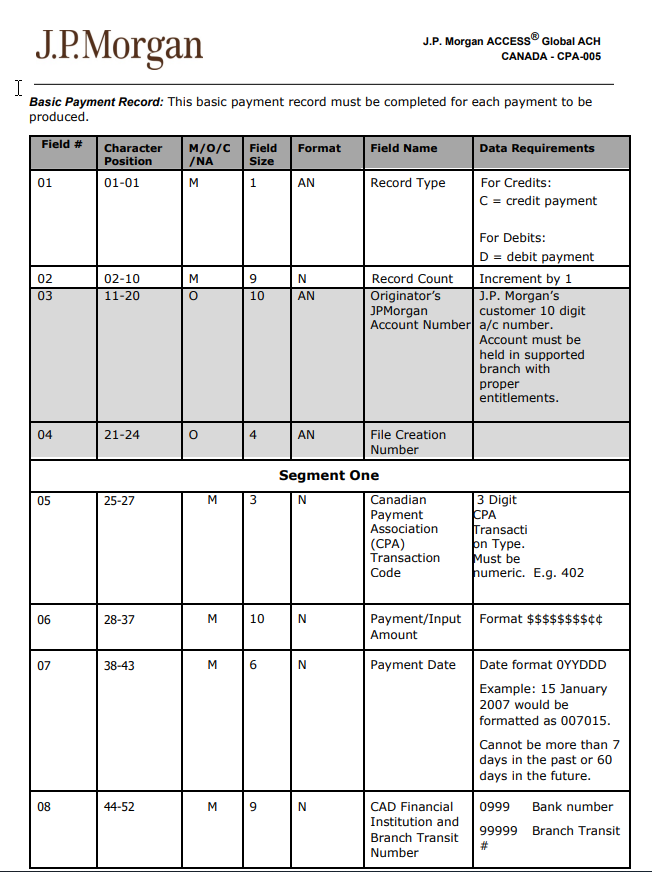

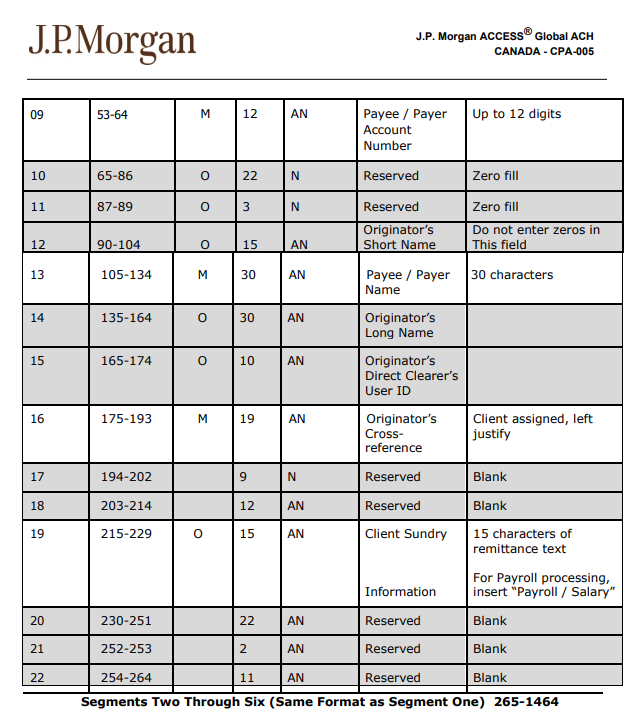

JPMorgan Chase CPA-005 File Specifications
Frequently Asked Questions (FAQs)
1. Does JPMorgan Chase Canada use CPA-005 files?
Yes. Canadian EFT payments are created using the CPA-005 standard file format.
2. Is JPMorgan Chase Canada processes through RBC?
Yes. JPMorgan Chase Canada EFT processing is commonly routed through the Royal Bank of Canada (RBC) network.
3. What Originator ID should I use?
Use the Originator ID assigned by JPMorgan Chase for your Canadian account. Contact your bank representative if you are unsure.
